FLY-120 EPE Foam Sheet Extrusion Machine

FOB Reference Price:Get Latest Price
$110,000.00 - $150,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
FLY-120
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Foaming Machine
Applicable Industries:
Manufacturing Plant
Condition:
New
Product Type:
Plastic Sheet
Place of Origin:
Guangdong, China
Brand Name:
FLY
Voltage:
380V/415V/440V/220V
Power(W):
52KW, 300kw
Dimension(L*W*H):
6*25*1.8
Weight:
1.5T, 13t
Certification:
CE, UL
Warranty:
1 Year
After-sales Service Provided:
Online support
Key Selling Points:
Long Service Life
Model:
FLY-120
Material:
LLDPE
Packaging & Delivery
Packaging Details
EPE Foam Sheet Extrusion Line
standard export packing
pe film packing
pe foam packing
Port
SHENZHEN SPOR
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

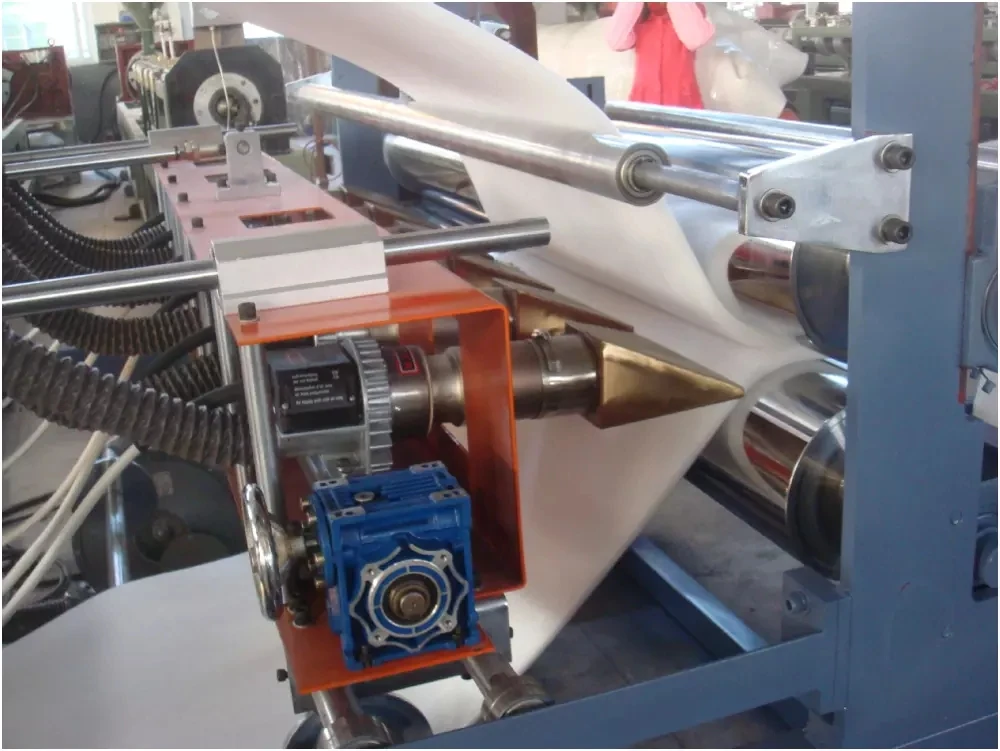

                                FLY-120 EPE Foam Sheet Extrusion Machine

Product Description

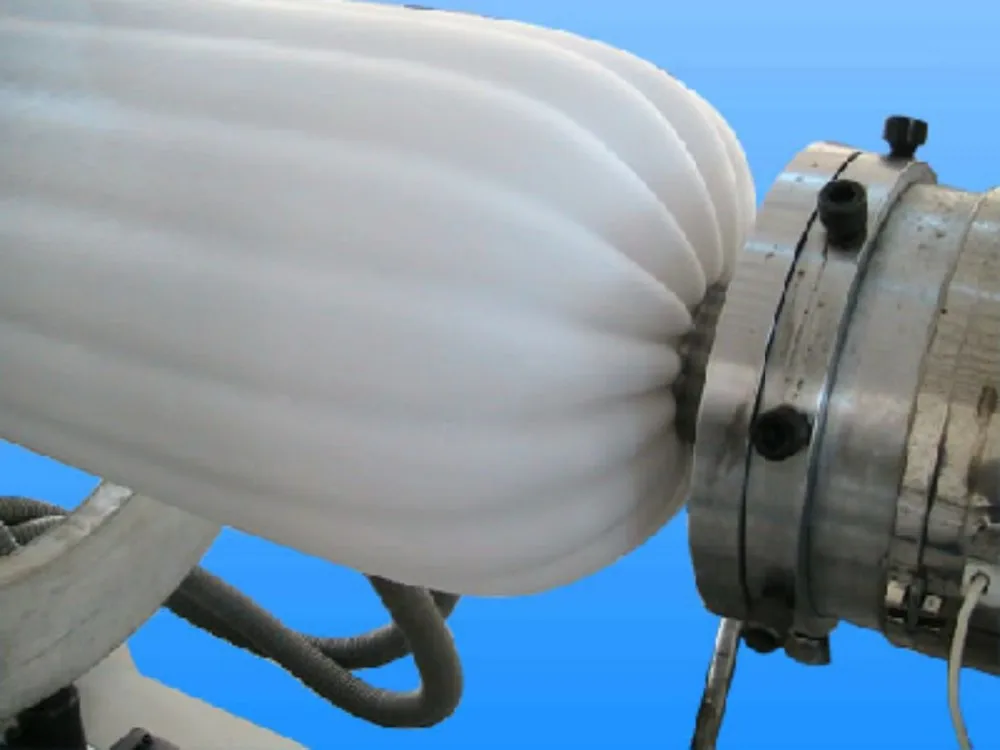

This machine is mainly used to produce EPE sheet. Using LDPE granule, by process of heating, melting, extruding, curing, foaming and forming to stick, tube, U type, V type, and fruit net. Its main features are noise and heat insulation, cushion protection, friction avoid, water, decay and moisture resistance, good elasticity, etc.

It can make 0.5-25mm sheet and also can produce all kinds of packing and filling materials by coating or laminating. These products are widely used to pack electron, electric equipment, arts, crafts, ceramic, lamp, computer products and furniture.

Technical Parameter:
Model
Screw dia
Screw L:D
Output
Thinkness
Width
Foaming times
Total power
Dimension
Weight
FLY75/90
75mm
55:1
≤100kg/h
0.5-3.5mm
≤1500mm
16-47
 115kw
22000*2300*2200mm
6t
FLY105
105mm
55:1
≤120kg/h
0.5-5.5mm
≤1600mm
16-47
130kw
25000*2500*2200mm
 7t
FLY120
120mm
55:1
≤160kg/h
0.5-8mm
≤1600mm
16-47
140kw
27000*2500*2200mm
8.5t
FLY130
130mm
55:1
≤180kg/h
1-9mm
≤1600mm
16-47
180kw
29000*2500*2200mm
 9.5t
FLY150
150mm
55:1
≤280kg/h
2-10mm
≤1600mm
16-47
210kw
30000*2800*2200mm
10t
FLY170
170mm
55:1
≤400kg/h
2-15mm
≤1800mm
16-47
250kw
32000*2800*2800mm
11t
FLY180
180mm
55:1
≤500kg/h
4-18mm
≤2000mm
16-47
300kw
 37000*2800*3500mm
13t
FLY200
200mm
55:1
≤600kg/h
4-20mm
≤2000mm
16-47
350kww
38000*2800*3800mm
13t
FLY220
220mm
55:1
≤800kg/h
4-25mm
≤2000mm
16-47
420kw
42000*2800*3800mm
14.5t
FLY250
250mm
55:1
 ≤1000kg/h
4-25mm
≤2000mm
16-47
480kw
45000*2800*3800mm
15t
Company Profile

1. HUIZHOU FULIYUAN MACHINERY is specialized in manufacturing three series of plastic machinery :


First class: EPE series machinery
EPE foam sheet extrusion machine, it includes:

1.Model 75mm-250mm EPE foam sheet extruder,

2. V type, U type , pipe, bar and many other profiles extruder,

3. Fruit net extruder, EPE foam sheet bonding machine (epe foam sheet lamination machine), EPE foam sheet coating machine, , EPE foam sheet cutting machine,

4.pole hydraulic cutting machine (punching machine), hot melt glue machine, EPE foam sheet auto-cutting machine, EPE foam bag making machine, EPE recycling machine (EPS recycling machine), PE sliting machine.

Second class: plastic film equipment
Automatic single layer, double layer or three layer of PE stretch film extrusion machine, with model of FLY500, FLY1000, FLY1500.

Third class: Plastic bag machine
Single, multi-layer co-extrusion PO(HDPE). PE(LDPE) film blowing machine, high-glass PP blowing machine, single to ten colors flexographic printing press, mixer, PO/PE/ABS/PVC plastic recycler.



2.FuLiYuan machinery brand is more than 10 years old.

3.The factory covers area of 10000 square meters, has different kinds of technical staffs more than 100.

4.We have the right of import and export license.

5.The products have exported to Southeast Asia, America, Africa, Europe etc.



We attended exhibitions all over the world: Thailand, India, Indonesia, Bangladesh, Turkey, South Africa, Dubai, Russia, Brazil, Mexico, Vietnam and so on.



Our customers come from all over the world!

Our Customers Come From All Over The World.
Our Certificate:
Packaging & Shipping
Standard Export Packing PE Film Packing PE Foam Packing Steel Fixed:

Packaging





Packaging Details

The normal package is wooden box,we use the EPE foam sheet for packing to protect the machine from damages during transportation. And we can also use other materials to pack the machine according to customers special request.


Our Services

1.Guarantee Period: Life-long paid service. First year if  any parts broken, not including the easy    consumption parts, supplier give the parts free, customer pay all the wood box packing fee, customs   and delivery fee and all fees outside the supplier’s factory. In the second year or later, if any parts  broken, supplier add 15% profit on the parts cost fee as ex work terms sell to customer.

2.Technology support.

3.Engineer available for installing machines over seas.

FAQ

Q1.Are you a factory or a trade company?

A1: We are manufacturer ,direct supplier from China.



Q2.Where is your factory located  in,how can I visit  the factory ?

A2: Our factory is located in Huizhou city Guangdong province,China .welcome to visit our factory ,you will get our warmly reception teart.



Q3.What is your payment  terms?

A3: 30%T/T in balance , the balanced will be paid before shipment or L/C.



Q4.What is your lead time?

A4: Within 30-60days after recived your deposit or original L/C.



Q5.How many days you engineers can stay abroad?

A5: 3 days for free.



Q6.If we need more than 3 days training after install pe foam machine,how to do?

A6:One Engineers for 3 days arranging supervision and training for free, his visa fee, round air ticket, eating and

accommodation should be supplied or paid by the buyer.USD$80/day should be paid as the salary to the technician

by the buyer if exceed 3 days.
